Tooth Belt for TS Series Automatic Sliding Door/Operator
TS series automatic sliding door/Operator like TS300 adopt the tooth belt with 15mm width for standard, all the belts with neoprene body, better protection against oil, grease, heat and aging. What's more, glass fiber cord inside the body of the belts, provides high strength, better flexing performance and low elongation. Nylon fabric tooth facing, provides resistance to abrasion and tooth shear.

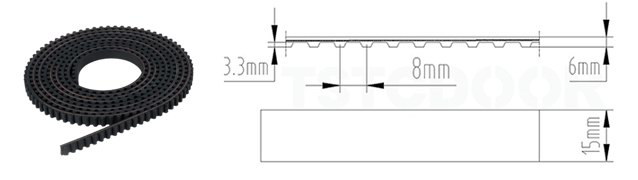

Specifications
▪ Width of tooth belt : 15mm .
▪ Thickness of tooth belt : 6mm .
▪ Pitch of tooth belt : 8mm .

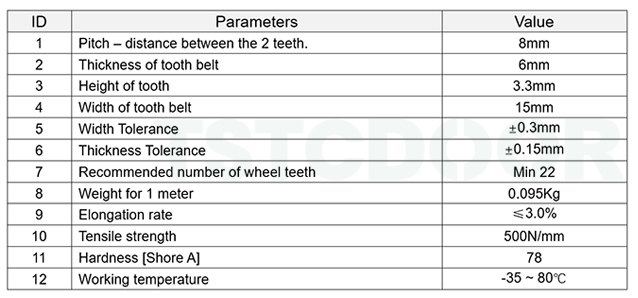

Technical Data
About the tooth belt with the width 15mm, the Pitch(distance between the 2 teeth) is 8mm, the thickness of tooth belt is 6mm, the height of tooth is 3.3mm, the recommended number of wheel teeth is more than 22, the weight for 1 meter is 0.095Kg, to more details please check the talbe below .
