Safety Features Of Automatic Revolving Doors From TSTC

The key safety functions and devices for automatic revolving door TAR300 and TAR200 include force sensitive control, anti-collision light curtain, vertical /horizontal safety switch, torque control system etc.. More information, please check the part below for reference .

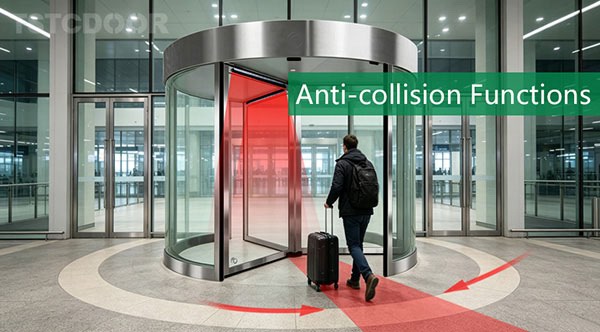

▪ Anti-collision Function for 3/4 Wing Revolving Door -TAR300

The anti-collision function also called anti-strike function is one of the key safety features of TAR300, which include the force sensitive control, anti-collision light curtain (option), horizontal safety switch (option). When people enter the safety area of the revolving door, the safety functions above will be triggered to work, to avoid people from being struck .

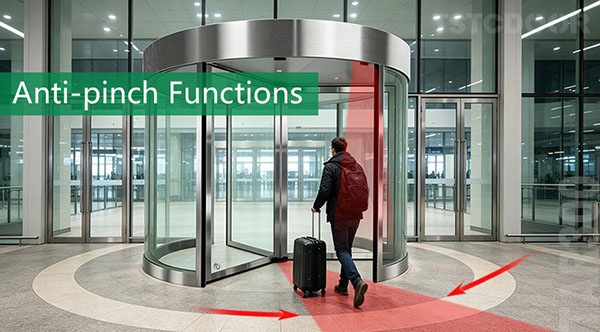

▪ Anti-pinch Functions /Devices of 3/4 Wing Revolving Door -TAR300

The anti-pinch or called anti-squeeze functions or devices of TAR300 including the vertical safety switch, anti-pinch PDR, torque control system. When people enter the safety area, the safety functions above will be triggered to work, to avoid people from being squeezed .

▪ Safety Functions /Devices for 2 Wing Revolving Door -TAR200

To TAR200, about 30 units of safety sensors are assembled totally to guarantee the safety of pedestrians, the details are as following . Foot Sensor in outer wall, Anti-squeeze PDR, Foot sensor in revolving part, Anti-collision PDR, Passive Safety Switch, Slow down and Brake Sensors, Outer wall passive safety Buffer, Electromagnetic Brake, Escape Button.

More information, please check our official product page TAR300 and TAR200 for reference .
