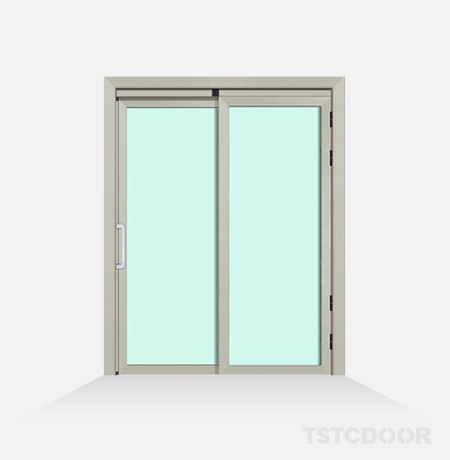

PD Door | PT Door -TPD100

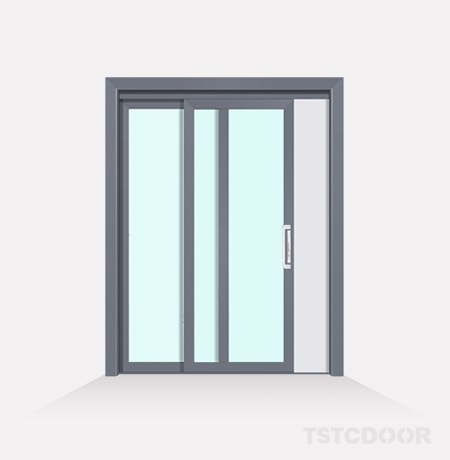

TPD100 is the PD Door from TSTC . PD Door also called PT Door or slide‑swing composite door, it originated in Singapore. P stands for Slide, D stands for Swing. PD Door is an integrated aluminium door system combining overhead sliding and swing functions. Its core working logic as slide the door leaf horizontally first, then swing it flat against the wall, enabling 100% full opening of the doorway.
Working Principle
▪ Closed status. The sash stays sealed, performing just like a standard interior door.
▪ Partial opening. Slide directly, functioning as a regular overhead sliding door.

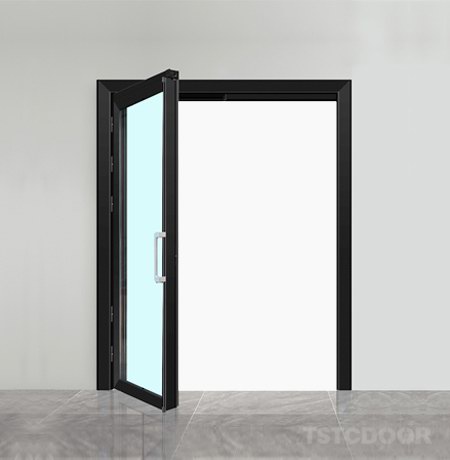

▪ Full opening: Slide the door leaf along the overhead track to the side, then swing it inward or outward by 90 degrees. The door leaf lies flat against the wall to fully free up the doorway without occupying extra space for swing rotation.
Key Advantages
▪ Dual‑mode opening. Conventional sliding doors can only open up to half the width, standard swing doors require clearance for rotation. PD doors support partial opening for ventilation as well as full opening, which facilitates moving large‑size furniture.
▪ After swinging open, the door leaf attaches flat to the wall and does not occupy interior passage space. It works perfectly for narrow doorways, compact kitchens and small bathrooms (ideal doorway width: 1000‑1400 mm), avoiding collisions with toilets or cabinets when opening.
▪ Modern aesthetic appearance. Most models feature ultra‑narrow aluminium frames with tempered glass, matching minimalist, modern and light‑luxury home styles. The insulating glass has also become increasingly popular recently .
Opening Methods

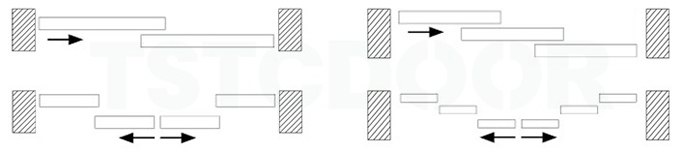

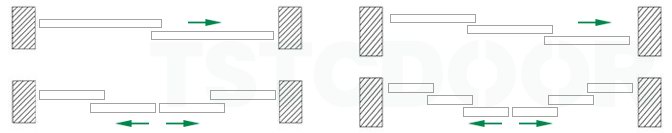

The commonly used opening methods of TPD100 include the 2-track 2-panel, 2-track 4-panel,3-track 3-panel and 3-track 6-panel .

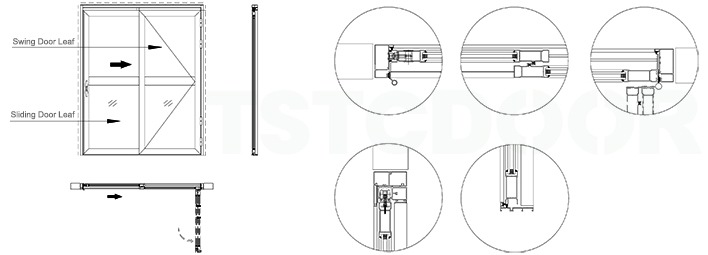

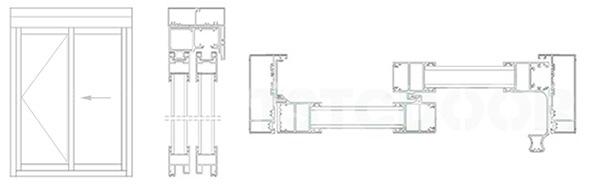

▪ Drawing Sample - 2 Track 2 Panel

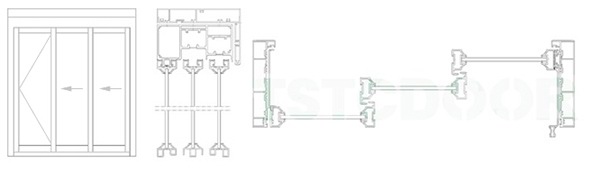

▪ Drawing Sample - 3 Track 3 Panel
Main Applications
PD Doors are ideal for space‑constrained areas, especially for the ones below .
▪ Residential applications : Kitchens, bathrooms, balconies, living‑room‑balcony partitions, bedrooms, walk‑in closets, small‑apartment interior partitions.
▪ Commercial applications : Office rooms, meeting rooms, hotel guest rooms, showrooms and commercial interior partitions, hospital ward /patient room.
Comparison Between PD Door & Other Similar Doors
Other popular manual doors possess the similar functions as PD Door /PT Door including the conventional swing door, conventional sliding door and folding door .
| Door Types | Max Opening | Floor Track | Space Occupancy |
| PD Door | 100% full opening | None (overhead track) | Swing flat against wall, minimal space occupied |
| Conventional Sliding Door | Approx. 50% | Available / Overhead track | Only half‑width opening |
| Conventional Swing Door | 100% full opening | None | Requires clearance for swing rotation |
| Folding Door | Nearly 100% | Floor track in most models | Sash stack occupies part of doorway width |
Safety Glass
▪ The standard glass for our PD door is insulating glass (double‑glazed glass) with a specification of 4 +15A +4mm, while 5+15A+5mm is also available as an option.
▪ Single‑glazed glass could also be provided upon request. The commonly‑used single‑glazed glass is 8 mm tempered glass, while 10 mm and 12 mm are also available as options.
Aluminum Profiles

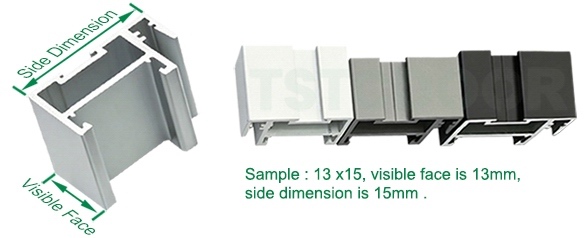

The TPD100‑series PD doors are available in multiple styles, depending on the visible face and side dimensions of the profiles. The popular door‑profile options will be showed as below .
▪ 25 x25mm, Economy Series.
▪ 13 x35 / 16 x18 /16 x35mm, Ultra‑narrow Series, Single glazing .
▪ 25 x35mm, Narrow Series, Single glazing /Double glazing .
▪ 50 x35mm, Flat‑surface Series, Double glazing /IGU(Insulated Glass Unit) .
▪ 70 x35mm, Flat‑surface Series, Double glazing /IGU(Insulated Glass Unit) .
Please specify the required Profile Dimensions when sending inquiry .
