Spare Parts for Automatic Sliding Door | TSTC

Views :
Update time : 2026-10-20

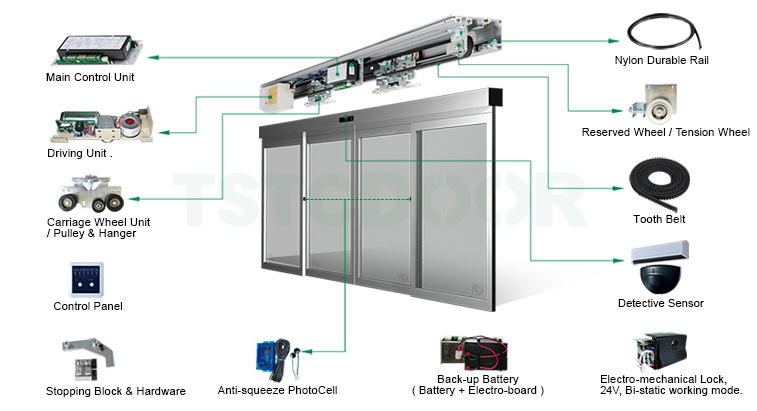

The Key Spare Parts for TSTC Automatic Sliding Door include Main Control Unit, Drive Unit ,Pulley &Hanger/Carriage Wheel Unit, Tension Wheel, Control Panel, Sensors could be perfectly substitute for the Operators from pop brands like GILGEN /KABA /KBB /DORMA.

Automatic Sliding Door Parts-TS300-TSTC

The Motor and Gearbox could meet American and European standard with Rated Power 100W, maximum drive Power 150N, could make the door opening speed range from 0.4 to 0.7m/s and door closing speed range from 0.3 to 0.6m/s .

The Control Unit assembles 32 digits Chip with faster processing speed, more input /output interfaces, easy to expand extra functions.

Several types of Radars could be provided with different shapes and color, BEA and OPTEX brands, microwave type, normal detective radar, Presence &Induction radar.

TSTC patent Durable Rail was made of nylon specially, compared with aluminum rail which used most by other brands ,the nylon durable rail possess the advantages like self lubricating, less noise and more wear resistance.

The Control Panel of TS300 was adopt module design,combination of normal operation ,maintenance and parameters setting .With this control panel, there is no need to open the Cover when setting the parameters or changing the running mode .

Our Electro-mechanical Lock adopt Bi-static working mode which could remain the same status before and after power failure.

Note : TS300 is the most classical model of TSTC sliding door operator, which possess the general technical features like the Adaptive Track Technology, Self-Learning Function, Self-Check for Malfunctions, Safety Edge, Anti-Pinch Photocells, Multi-Mode Control, Quiet Operation. TS300 is hot sale in automatic door market for over 10 years, had already installed in plenty of airports, chain supermarkets, hotels, shopping malls, bus /metro stations and other types of projects in more than 20 countries .

To more information please check our product page or contact our local distributors .
