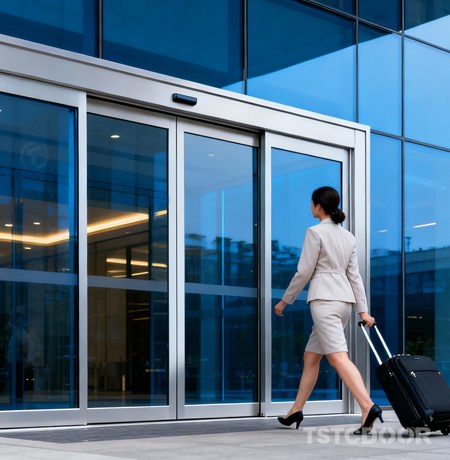

TS300 - Automatic sliding door operator

TS300 is the most classical model of TSTC sliding door operator, hot sale in automatic door market for over 10 years. TS300 had already installed in plenty of airports, chain supermarkets, hotels, shopping malls, bus stations in more than 30 countries .

▪ Dimension of Operator

185 x105mm ( section width 185mm, section height 105mm ) .

▪ Key Components with Higher Quality

1. Drive Unit

The drive unit including the Motor, Reducer and Transformer . The Motor could meet American and European standard .

Rated Power : 100W .

Maximum Drive Power : 150N .

Opening Speed Range : 0.4~0.7m/s .  Closing Speed Range : 0.3~0.6m/s .

2. Main Control Unit

32 digits Chip, operated faster .

More input /output interfaces, easy function expansion.

Module design . More reasonable structure, more stable  performance . Double motor supported .

3. Detective Sensor /Radar

Several excellent Radars with different shapes and functions could be provided.

Including BEA and OPTEX popular models .

4. Supporting Beam

The Supporting Rail was made of High strength Aluminum, 5mm thickness, more durable, and make the whole operator even the whole sliding door much more stronger and stable .

5. Nylon Durable Rail

Our Durable Rail was made of nylon specially, compared with aluminum rail which used most by other brands ,the nylon durable rail possess the biggest advantages including the self lubricating, less noise and more wear resistance.

6. Carriage Wheel Unit / Hanger and Pulley

To TS300, the body of Carriage Wheel Unit was made of special steel, it's also galvanized which guarantee the long life.

The wheels was made of special synthetic material , more wear resistant. The whole unit could be adjustable.

7. The Control Panel

The Control Panel of TS300 was adopted Module Design ,much easier to operate .

Combination of normal operation ,maintenance and parameters setting . With this control panel, there is no need to open the Cover when setting the parameters or changing the running mode .

8. Electro Mechanical Lock ( Optional )

24V, Bi-static working mode, more stable. It could remain the same status before and after power failure, that means if the Electro-mechanical lock is the lock status before power failure, then it will keep lock status after power failure, and if is unlock status before power failure, then it will keep unlock after power failure.

9. Backup Battery ( Optional )

Continue working for at least 30 minutes when power failure, No limitation of operation .

▪ Technical Data
